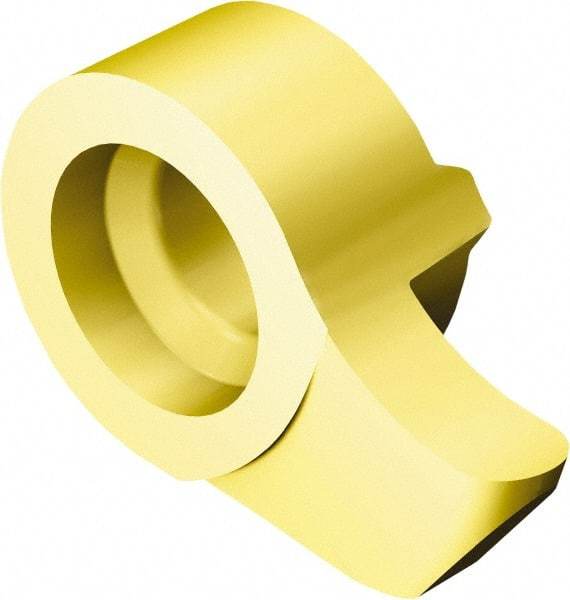

Sandvik Coromant - 09MB.. R 2mm Cutting Width Carbide Grooving Insert - 4.01mm Max Depth of Cut, Right Hand, 1mm Corner Radius, TiAlN/TiN Finish
Item #: 68482157
Brand: Sandvik Coromant
Model #: 5735843
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MB.. |
| Insert Size | 09 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 4.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.1580 |
| Coating | TiAlN/TiN |
| Insert Hand | Right Hand |
| Insert Seat Size | 09 |
| Chipbreaker | R |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.2090 |
| Series | CoroCut MB |
| Rake | Positive |
| ISO Number | MB-09R200-10-14R 1025 |
| Manufacturers Catalog Number | MB-09R200-10-14R 1025 |
| Overall Width (Decimal Inch) | 0.0790 |
