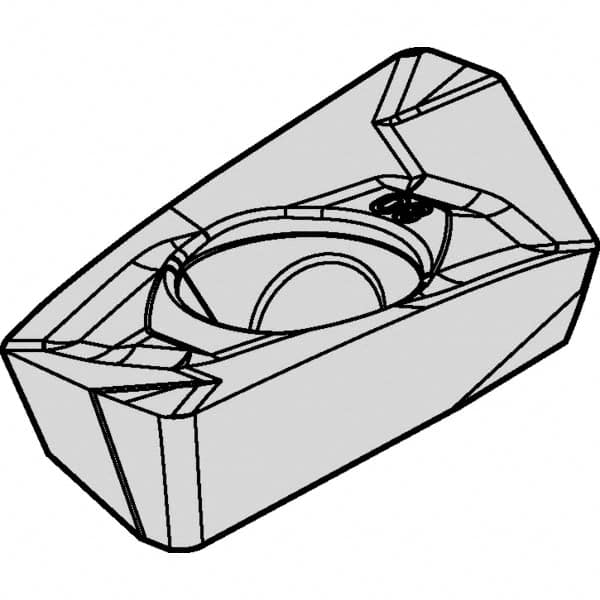

Kennametal - EP1812E KCPM40 Carbide Milling Insert
Item #: 68467356
Brand: Kennametal
Model #: 5545400
Product Specifications
| Insert Style | EP18; EP |
| Insert Size | 1812 |
| Material | Carbide |
| Manufacturer's Grade | KCPM40 |
| Coating | TiAlN/AlCrN |
| Width (Decimal Inch) | 0.4331 |
| Length (Decimal Inch) | 0.8570 |
| Thickness (Decimal Inch) | 0.2165 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Relief Angle | 15.000 |
| Rake Angle | 15 |
| Coating Process | PVD |
| Included Angle | 70 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | GD |
| ISO Number | EDPT180512PDERGD |
| ANSI Number | EP1812E |
| Style | Parallelogram |
| Corner Radius (Decimal Inch) | 3/64 |
