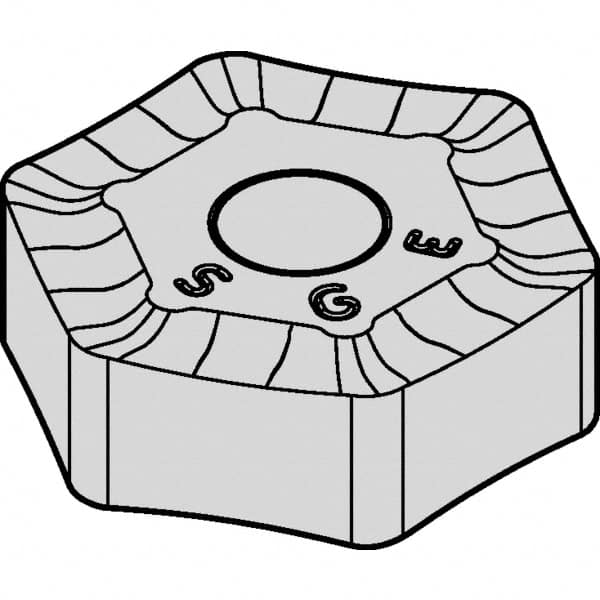

Kennametal - HNHX5354SNGE KCK15 Carbide Milling Insert
Item #: 68466994
Brand: Kennametal
Model #: 5615518
Product Specifications
| Insert Style | HNHX |
| Insert Size | 5354 |
| Material | Carbide |
| Manufacturer's Grade | KCK15 |
| Coating | TiN/TiCN/Al2O3 |
| Length (Decimal Inch) | 0.3680 |
| Inscribed Circle (Decimal Inch) | 0.6380 |
| Thickness (Decimal Inch) | 0.2190 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Hole Diameter (mm) | 5.00 |
| Hole Diameter (Decimal Inch) | 0.1970 |
| Relief Angle | 0.000 |
| Rake Angle | 15 |
| Coating Process | CVD |
| Included Angle | 120 |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Chipbreaker | GE |
| Manufacturers Catalog Number | HNHX5354SNGE |
| Corner Radius (Decimal Inch) | 1/16 |
