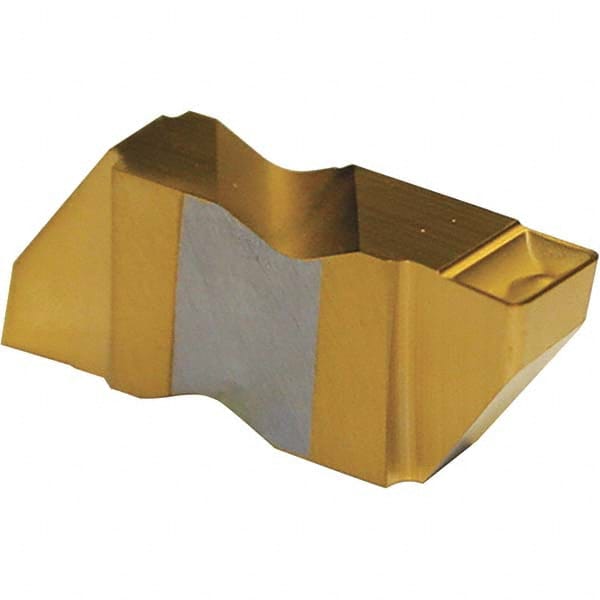

Tool-Flo - FLG3M175LCB AC3R Carbide Grooving Insert
Item #: 68357532
Brand: Tool-Flo
Model #: 563M175PLAC3R
Product Specifications
| Insert Style | FLG |
| Insert Size | 3 |
| Material | Carbide |
| Cutting Width (mm) | 1.75 |
| Cutting Width (Decimal Inch) | 0.0689 |
| Maximum Depth of Cut (mm) | 3.05 |
| Maximum Depth of Cut (Decimal Inch) | 0.1201 |
| Manufacturer's Grade | AC3R |
| Coating | TiAlN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Chipbreaker | P |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0050 |
| Maximum Corner Radius (Decimal Inch) | 0.0100 |
| Corner Radius (Decimal Inch) | 0.005-0.010 |
| Coating Process | PVD |
| Series | Flo-Lock |
| ISO Number | FLG-3M175L-CB |
| Manufacturers Catalog Number | FLG-3M175L-CB |
| Insert Thickness (Decimal Inch) | 0.1950 |
