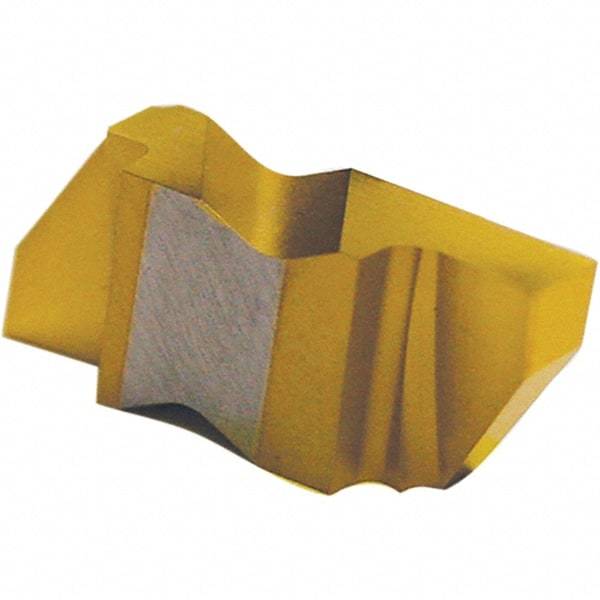

Tool-Flo - 6312FLG Grade GP50E, 7.92mm Cutting Width Carbide Grooving Insert - 6.35mm Max Depth of Cut, Left Hand, 0.03 to 0.035" Corner Radius, TiN Finish
Item #: 68355478
Brand: Tool-Flo
Model #: 576212LN4E
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLG |
| Insert Size | 6312 |
| Material | Carbide |
| Cutting Width (mm) | 7.92 |
| Cutting Width (Decimal Inch) | 0.3120 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | GP50E |
| Coating | TiN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (Decimal Inch) | 0.4530 |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0300 |
| Maximum Corner Radius (Decimal Inch) | 0.0350 |
| Corner Radius (Decimal Inch) | 0.030-0.035 |
| Coating Process | PVD |
| Series | Flo-Lock |
| Manufacturers Catalog Number | FLG-6312L |
| Insert Thickness (Decimal Inch) | 0.3830 |
