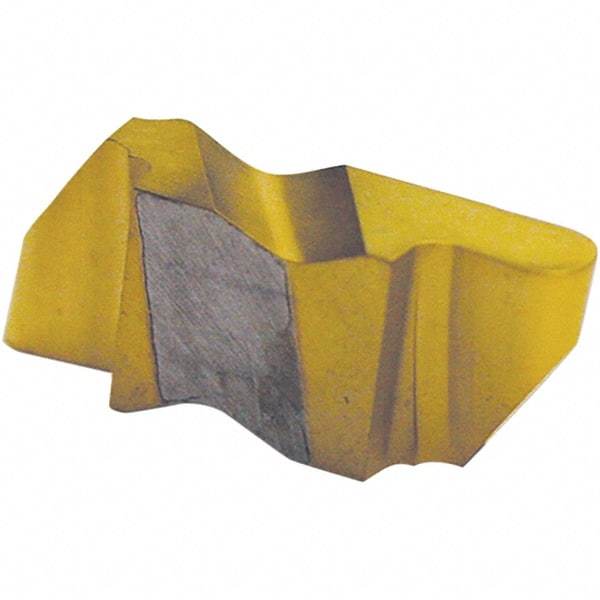

Tool-Flo - 3078FLR CB Grade GP3R, 3.96mm Cutting Width Carbide Grooving Insert - 4.57mm Max Depth of Cut, Right Hand, 1.98mm Corner Radius, TiN Finish
Item #: 68355098
Brand: Tool-Flo
Model #: 593078PRJ5R
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLR |
| Insert Size | 3078 |
| Material | Carbide |
| Cutting Width (mm) | 3.96 |
| Cutting Width (Decimal Inch) | 0.1560 |
| Maximum Depth of Cut (mm) | 4.57 |
| Maximum Depth of Cut (Decimal Inch) | 0.1800 |
| Material Grade | Micrograin |
| Manufacturer's Grade | GP3R |
| Coating | TiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Chipbreaker | CB |
| Multi-Use Tool | No |
| Corner Radius (mm) | 1.98 |
| Corner Radius (Decimal Inch) | 0.0780 |
| Coating Process | PVD |
| Series | Flo-Lock |
| Manufacturers Catalog Number | FLR-3078R |
| Insert Thickness (Decimal Inch) | 0.1950 |
