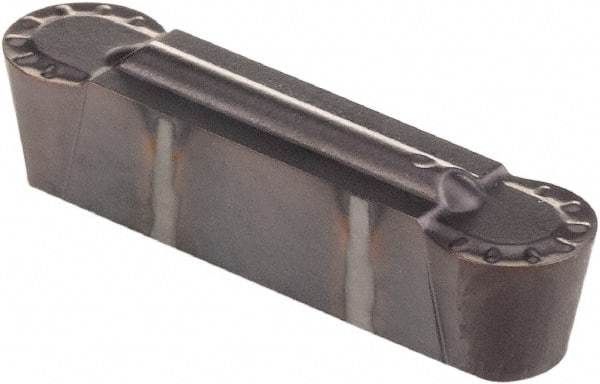

Kennametal - 187R GMN Grade KCU25, 4.76mm Cutting Width Carbide Grooving Insert - 3.78mm Max Depth of Cut, Neutral, 2.39mm Corner Radius, AlTiN Finish
Item #: 68147842
Brand: Kennametal
Model #: 4114357
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R |
| Insert Size | 187 |
| Material | Carbide |
| Cutting Width (mm) | 4.76 |
| Cutting Width (Decimal Inch) | 0.1874 |
| Maximum Depth of Cut (mm) | 3.78 |
| Maximum Depth of Cut (Decimal Inch) | 0.1496 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.75 |
| Cutting Height (Decimal Inch) | 0.1870 |
| Insert Seat Size | 4 |
| Chipbreaker | GMN |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (mm) | 2.39 |
| Corner Radius (Decimal Inch) | 0.0940 |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | A4 |
| Manufacturers Catalog Number | A4R187I04P00GMN |
