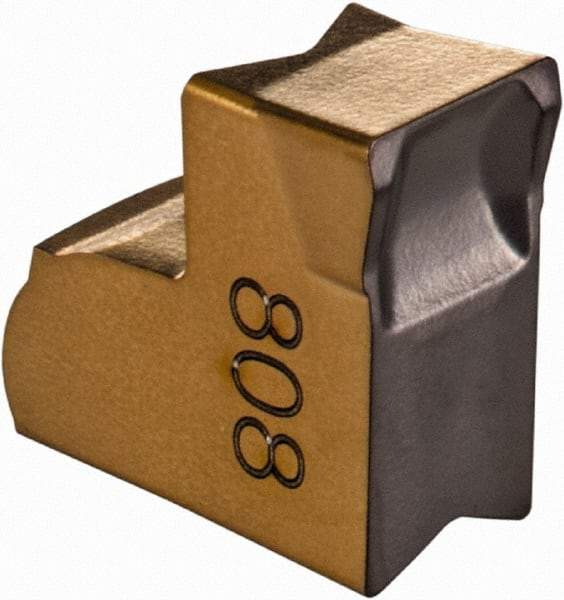

Iscar - TAGN4 C IC808 Grade, 0.157" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0094" Cnr Rad, TiN/TiAlN Coated, Single End
Item #: 68035567
Brand: Iscar
Model #: 6003579
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TAGN |
| Insert Size | 4 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 3.99 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiN/TiAlN |
| Series | Tang-Grip |
| Relief Angle | 7 |
| Chipbreaker | C |
| Full Radius | No |
| Multi-Use Application | Grooving; Slitting; Slotting |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0094 |
| Corner Radius (mm) | 0.24 |
| Insert Hand | Neutral |
| Insert Holding Method | Self Grip |
| Manufacturers Catalog Number | TAG N4C |
