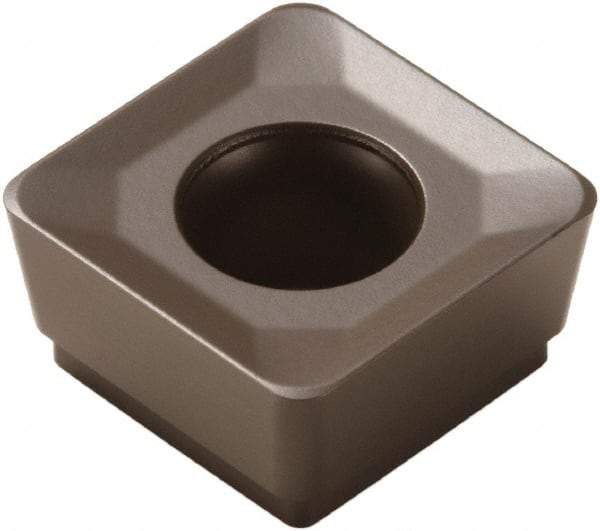

Seco - SCET120630 M14 Grade T350M Carbide Milling Insert - TiCN/Al2O3 Finish, 1/4" Thick, 1/2" Inscribed Circle, 0.118" Corner Radius
Item #: 67921759
Brand: Seco
Model #: 23956
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCET |
| Insert Size | 120630 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | T350M |
| Coating | TiCN/Al2O3 |
| Width (Decimal Inch) | 0.5000 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.1180 |
| Relief Angle | 7.000 |
| Rake Angle | 15 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | M14 |
| ISO Number | SCET120630T-M14 |
