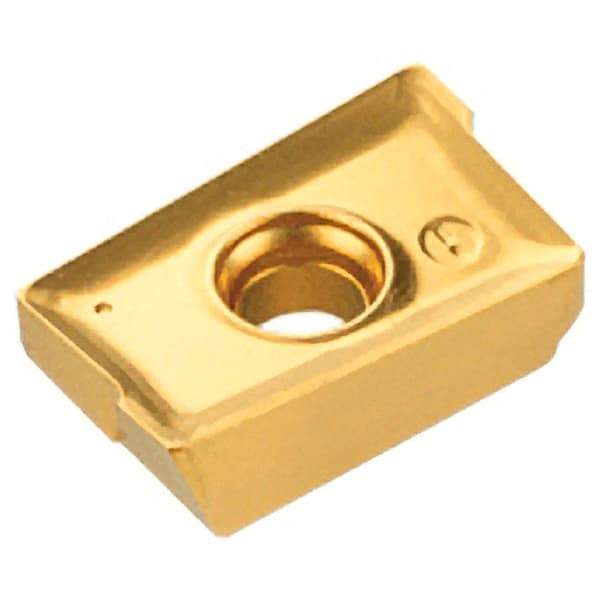

Iscar - 3M AXKT1304 MM Grade IC950 Carbide Milling Insert - TiAlN Finish, 0.179" Thick, 0.024" Corner Radius
Item #: 67842534
Brand: Iscar
Model #: 5602541
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 3M AXKT |
| Insert Size | 1304 |
| Material | Carbide |
| Manufacturer's Grade | IC950 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.3310 |
| Length (Decimal Inch) | 0.5560 |
| Thickness (Decimal Inch) | 0.1790 |
| Corner Radius (Decimal Inch) | 0.0240 |
| Relief Angle | 30.000 |
| Rake Angle | 30 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | MM |
| Maximum Depth of Cut (Decimal Inch) | 0.5060 |
| ISO Number | 3M AXKT 1304-PDRMM |
