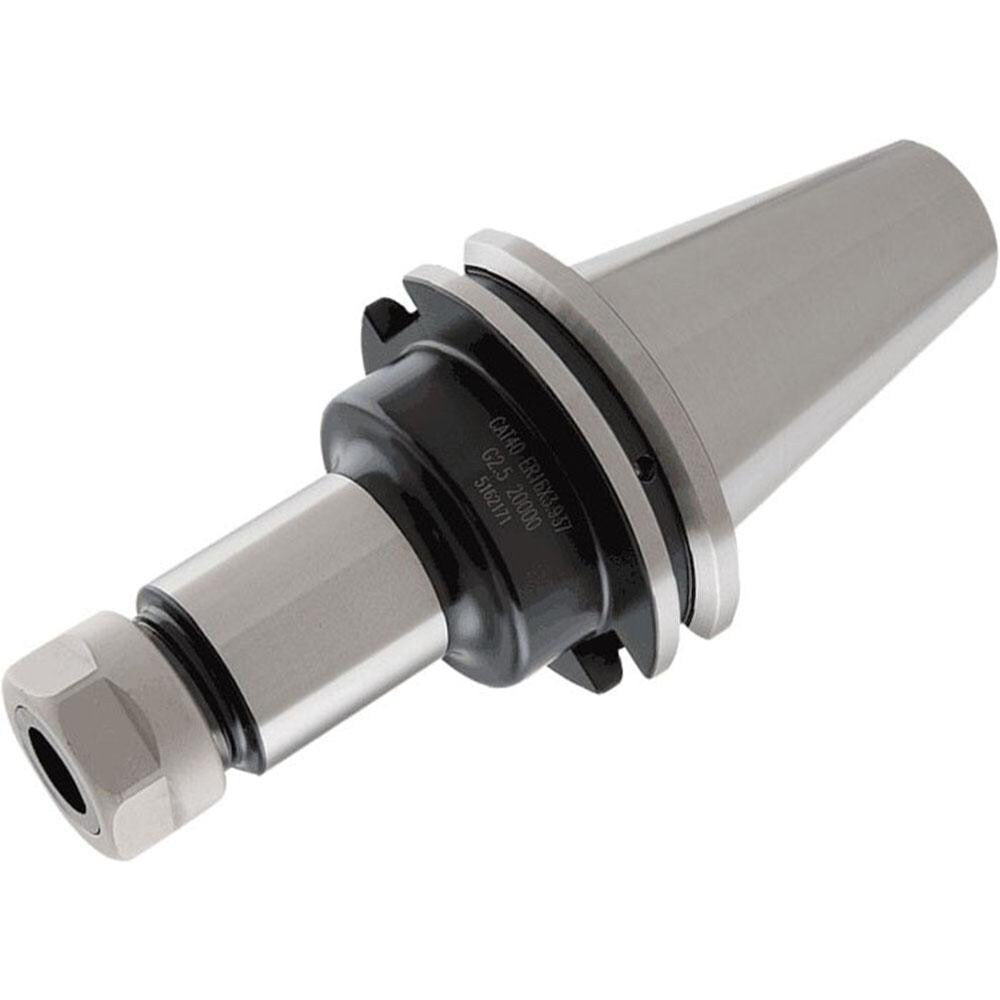

Collet Chuck: 0.0200 to 0.3940" Capacity, Full Grip Collet, 1.9685" Shank Dia, Taper Shank, Dual Contact
Item #: 33990045
Brand: Tungaloy
Model #: 4510473
Product Specifications
| Collet System | Full Grip |
| Collet Series | ER16 |
| Shank Type | Taper |
| Taper Size | CAT50 |
| Projection (Decimal Inch) | 3.9370 in |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0200 |
| Maximum Collet Capacity (Decimal Inch) | 0.3940 |
| Overall Length (Decimal Inch) | 3.94 |
| Actuator Type | Wrench |
| Dual Contact | Yes |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.1020 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Material | Steel |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.1020 |
| UNSPSC Code | 27112808 |
