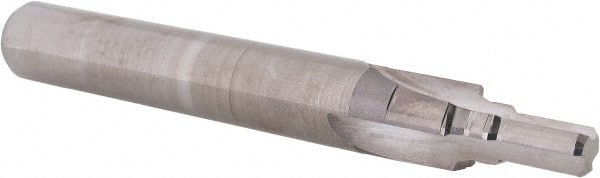

Porting Tool: 0.496″ Spotface Dia, 1/4″ Tube OD, Reamer, Solid Carbide, Tube Dash #4 0.275″ Min Pilot Dia, 0.4015″ Pilot Length, 4″ OAL, 3 Flutes
Item #: 67439745
Brand: Scientific Cutting Tools
Model #: RPT-4
Product Specifications
| Spotface Diameter (Decimal Inch) | 0.4960 |
| Tube Outside Diameter Compatibility (Inch) | 1/4 |
| Pilot Type | Reamer |
| Tool Material | Solid Carbide |
| Tube Dash Number | 4 |
| Minimum Pilot Diameter (Decimal Inch) | 0.2750 |
| Pilot Length | 0.4015 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Number Of Flutes | 3 |
| Identification Groove | No |
| Seal Angle | 21 |
| Thread Type | UNJF |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 1/2 |
| Shank Length (Decimal Inch) | 2.0000 |
| Maximum Pilot Diameter (Decimal Inch) | 0.3400 |
| Head Length (Decimal Inch) | 2.0000 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | Bright |
