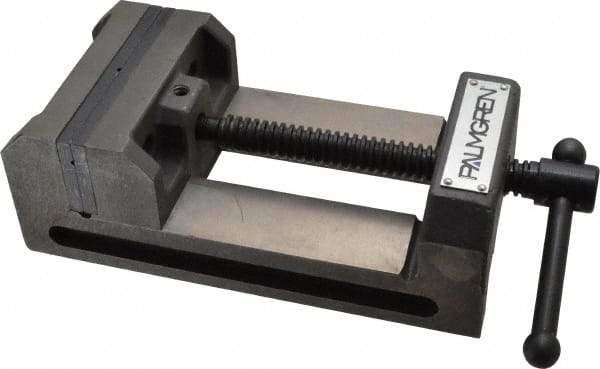

Palmgren - 4-1/2" Jaw Opening Capacity x 1-1/2" Throat Depth, Horizontal Drill Press Vise - 4" Wide Jaw, Stationary Base, Standard Speed, 7-5/16" OAL x 2-3/4" Overall Height
Item #: 67415331
Brand: Palmgren
Model #: 9612352
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 4 |
| Jaw Opening Capacity (Inch) | 4-1/2 |
| Jaw Opening Capacity (Decimal Inch) | 4.5000 |
| Throat Depth (Inch) | 1-1/2 |
| Throat Depth (Decimal Inch) | 1.5000 |
| Orientation Type | Horizontal |
| Base Motion Type | Stationary |
| Spindle Operation Type | Standard |
| Overall Length (Inch) | 7-5/16 |
| Overall Height (Inch) | 2-3/4 |
| Model Number | DP35 |
| Jaw Style | Grooved |
