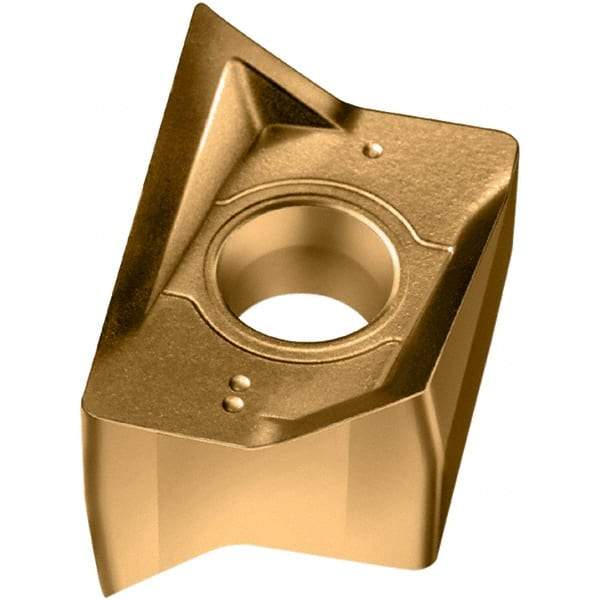

Walter - LNGX130708 L5 Grade WAK15 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 0.3126" Thick, 0.8mm Corner Radius
Item #: 67194019
Brand: Walter
Model #: 5045331
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNGX |
| Insert Size | 130708 |
| Material | Carbide |
| Material Grade | K15 |
| Manufacturer's Grade | WAK15 |
| Coating | TiCN/Al2O3/TiN |
| Thickness (Decimal Inch) | 0.3126 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Coating Process | CVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | L5 |
| Manufacturers Catalog Number | LNGX130708R-L5 |
