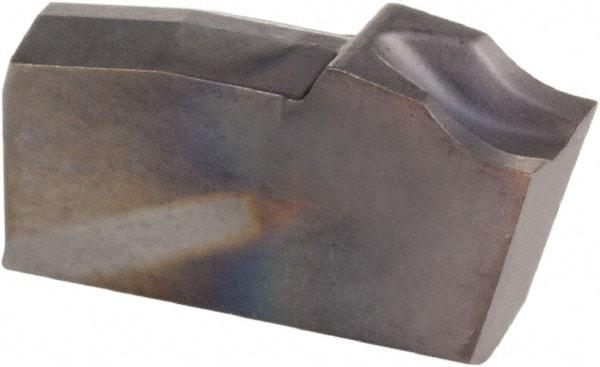

Kennametal - A23 CF KCU25 Grade, 0.122" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, AlTiN Coated, Single End
Item #: 67056861
Brand: Kennametal
Model #: 4111096
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | A2 |
| Insert Size | 3 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 3.10 |
| Cutting Width (Decimal Inch) | 0.1220 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Series | A2 |
| Relief Angle | 2 |
| Chipbreaker | CF |
| Full Radius | No |
| Coating Process | PVD |
| Cutting Height (Decimal Inch) | 0.0000 |
| Corner Radius (Inch) | 0 |
| Insert Hand | Neutral |
