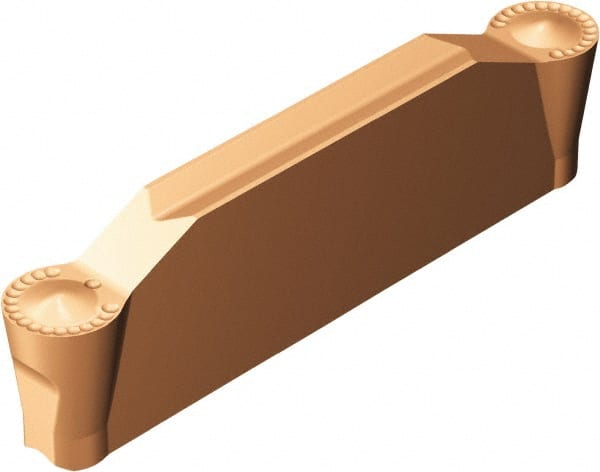

Sandvik Coromant - N123F2-0318-RM 1125 Carbide Grooving Insert
Item #: 66923335
Brand: Sandvik Coromant
Model #: 5735872
Product Specifications
| Insert Style | N123x2 |
| Insert Size | F2 |
| Material | Carbide |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Inch) | 1/8 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (mm) | 18.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.7320 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Insert Seat Size | F |
| Chipbreaker | RM |
| Multi-Use Application | Grooving; Parting |
| Multi-Use Tool | Yes |
| Minimum Corner Radius (Decimal Inch) | 0.0625 |
| Corner Radius (mm) | 1.58 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Coating Process | PVD |
| Series | CoroCut? 1-2 |
| Rake | Positive |
| ISO Number | N123F2-0318-RM 1125 |
| Manufacturers Catalog Number | N123F2-0318-RM 1125 |
| Overall Width (Decimal Inch) | 0.1250 |
| Insert Thickness (Decimal Inch) | 0.1693 |
