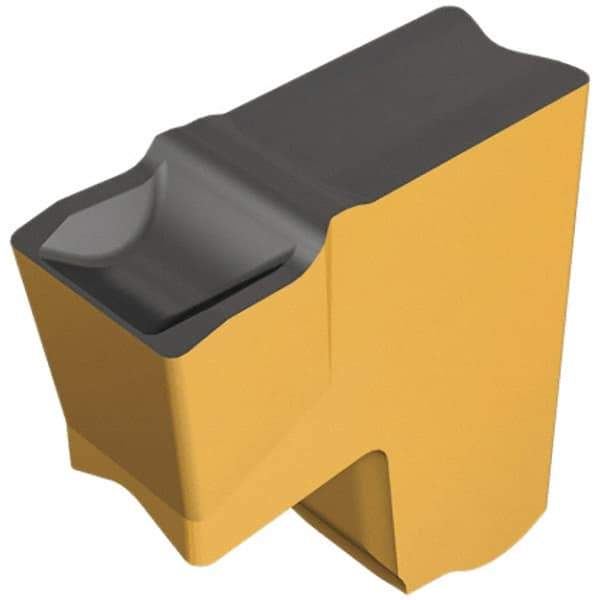

Iscar - TAG4 C Grade IC5400, 4mm Cutting Width Carbide Cutoff Insert - Neutral Lead Angle, 0.25mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 66814880
Brand: Iscar
Model #: 6004963
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TAG |
| Insert Size | 4 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Manufacturer's Grade | IC5400 |
| Coating | TiCN/Al2O3/TiN |
| Relief Angle | 7 |
| Chipbreaker | C |
| Multi-Use Application | Grooving; Parting; Turning |
| Coating Process | CVD |
| Corner Radius (Decimal Inch) | 0.0100 |
| Corner Radius (mm) | 0.25 |
| Width Tolerance | 0.05 (mm) |
| Manufacturers Catalog Number | TAG N4MF |
