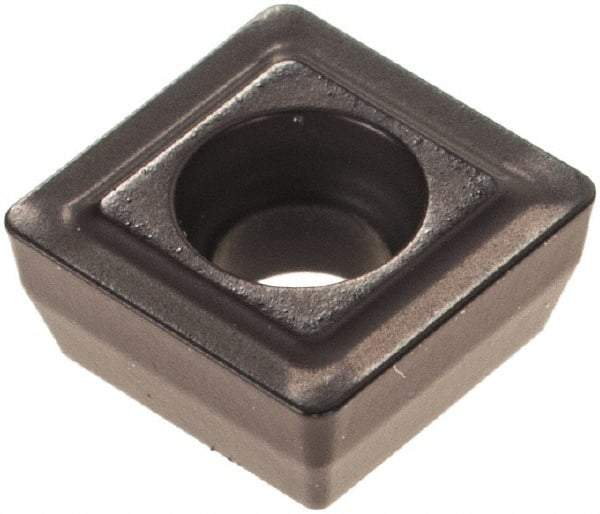

Komet - SOEX050204 01 Grade BK6115 Carbide Indexable Drill Insert - TiCN/TiN/Al2O3 Finish, Square, 7/32" Inscribed Circle
Item #: 66723206
Brand: Komet
Model #: W8313000016115
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SOEX |
| Insert Size | 050204 |
| Material | Carbide |
| Manufacturer's Grade | BK6115 |
| Inscribed Circle (mm) | 5.56 |
| Inscribed Circle (Decimal Inch) | 0.2189 |
| Thickness (mm) | 2.38 |
| Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Square |
| Relief Angle | 8 |
| Included Angle | 90 |
| Coating | TiCN/TiN/Al2O3 |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Chipbreaker | 01 |
