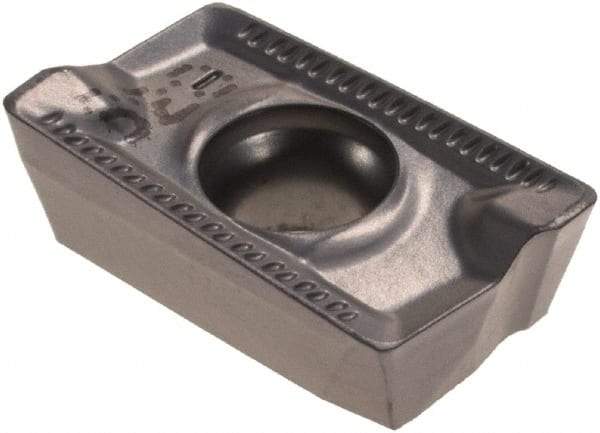

Iscar - APKT1604 76 Grade IC928 Carbide Milling Insert - TiAlN Finish, 0.2244" Thick, 0.8mm Corner Radius
Item #: 66715897
Brand: Iscar
Model #: 5602364
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APKT |
| Insert Size | 1604 |
| Material | Carbide |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.3720 |
| Length (Decimal Inch) | 0.6811 |
| Thickness (Decimal Inch) | 0.2244 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Chipbreaker | 76 |
| Maximum Depth of Cut (mm) | 15.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.6024 |
| Manufacturers Catalog Number | APKT 1604PDR-76 |
