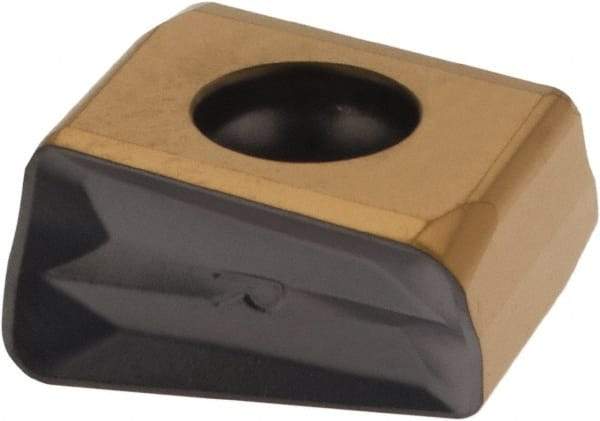

Iscar - T490 LNHT130616 Grade IC330 Carbide Milling Insert - TiCN/TiN Finish, 0.2618" Thick, 1.6mm Corner Radius
Item #: 66673286
Brand: Iscar
Model #: 5606066
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNHT |
| Insert Size | 130616 |
| Material | Carbide |
| Manufacturer's Grade | IC330 |
| Coating | TiCN/TiN |
| Width (Decimal Inch) | 0.5079 |
| Length (Decimal Inch) | 0.5433 |
| Thickness (Decimal Inch) | 0.2618 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| ISO Number | T490 LNHT 130616PNTR |
