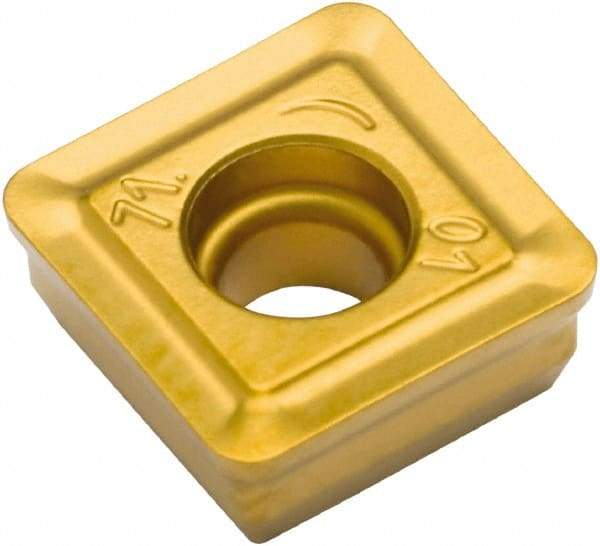

Komet - SOGX050204 01 Grade BK6425 Carbide Indexable Drill Insert - TiCN/Al2O3/TiN Finish, Square, 5.5mm Inscribed Circle
Item #: 66194713
Brand: Komet
Model #: W8012010046425
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SOGX |
| Insert Size | 050204 |
| Material | Carbide |
| Manufacturer's Grade | BK6425 |
| Inscribed Circle (mm) | 5.50 |
| Inscribed Circle (Decimal Inch) | 0.2165 |
| Thickness (mm) | 2.40 |
| Thickness (Decimal Inch) | 0.0945 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Square |
| Relief Angle | 9 |
| Included Angle | 90 |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Chipbreaker | 01 |
