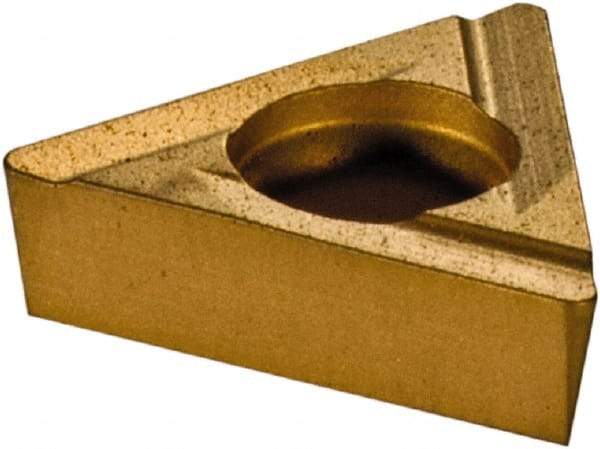

Komet - TOHX06T103 G12 Grade BK6425 Carbide Boring Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 8° Relief Angle, 4mm Inscr Circle, 1.8mm Thick, 0.3mm Corner Radius
Item #: 66180043
Brand: Komet
Model #: W3004120036425
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TOHX |
| Insert Size | 06T103 |
| Manufacturer's Grade | BK6425 |
| Inscribed Circle (mm) | 4.00 |
| Inscribed Circle (Decimal Inch) | 0.1575 |
| Thickness (mm) | 1.80 |
| Thickness (Decimal Inch) | 0.0709 |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Coating | TiCN/Al2O3/TiN |
| Chipbreaker | G12 |
| Length (mm) | 1.00 |
| Length (Decimal Inch) | 0.0394 |
| Rake | Positive |
| Rake Angle | 12 |
| Relief Angle | 8 |
| Included Angle | 60 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Coating Process | CVD |
| Insert Holding Method | Screw |
| Shape | Triangle |
