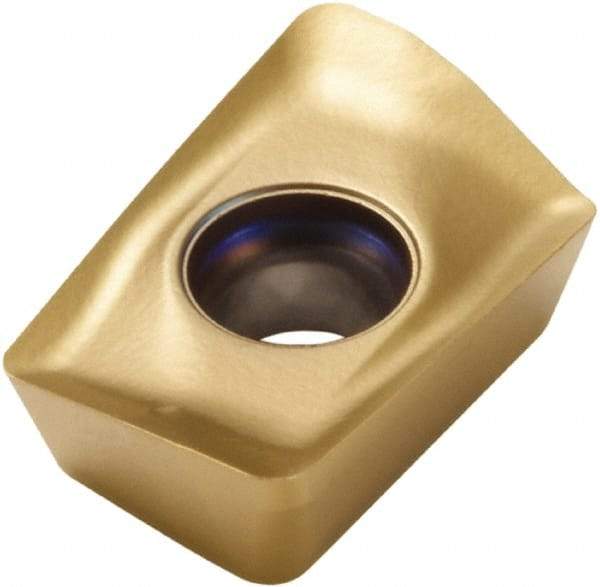

Seco - XOEX10T304 E05 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 0.151" Thick, 0.27" Inscribed Circle
Item #: 65948648
Brand: Seco
Model #: 17183
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XOEX |
| Insert Size | 10T304 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.2700 |
| Inscribed Circle (Decimal Inch) | 0.2700 |
| Thickness (Decimal Inch) | 0.1510 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Chipbreaker | E05 |
| ISO Number | XOEX10T304FR-E05 |
