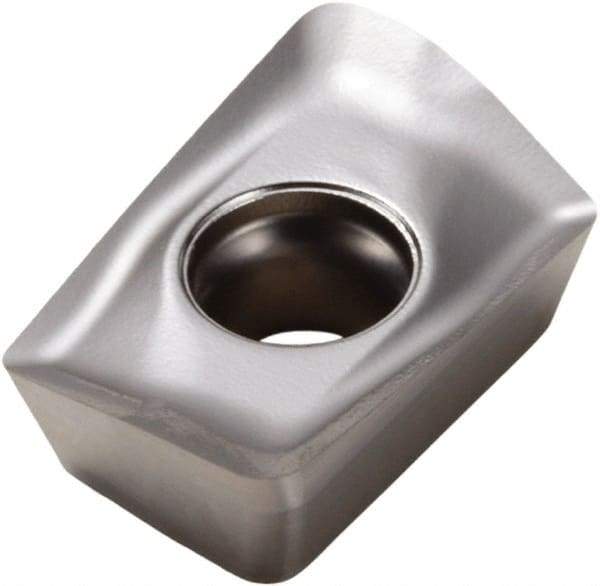

Seco - XOEX10T312 E05 Grade H15 Carbide Milling Insert - Uncoated, 0.151" Thick, 0.27" Inscribed Circle
Item #: 65948549
Brand: Seco
Model #: 17329
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XOEX |
| Insert Size | 10T312 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | H15 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.2700 |
| Inscribed Circle (Decimal Inch) | 0.2700 |
| Thickness (Decimal Inch) | 0.1510 |
| Relief Angle | 15.000 |
| Shape | Parallelogram |
| Chipbreaker | E05 |
| ISO Number | XOEX10T312FR-E05 |
