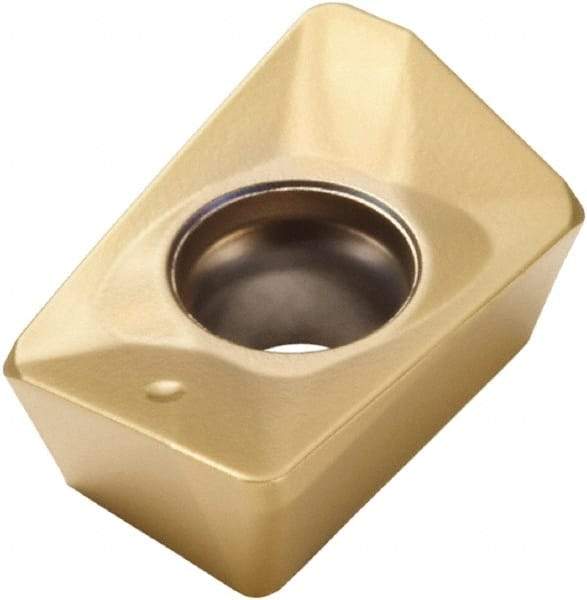

Seco - XOMX120431 M12 Grade MP3000 Carbide Milling Insert - TiAlN Finish, 0.1547" Thick, 3.1mm Corner Radius
Item #: 65947897
Brand: Seco
Model #: 75386
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XOMX |
| Insert Size | 120431 |
| Material | Carbide |
| Manufacturer's Grade | MP3000 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.3220 |
| Length (Decimal Inch) | 0.4492 |
| Thickness (Decimal Inch) | 0.1547 |
| Corner Radius (Decimal Inch) | 0.1220 |
| Corner Radius (mm) | 3.10 |
| Relief Angle | 14.000 |
| Coating Process | PVD |
| Included Angle | 80 |
| Shape | Parallelogram |
| Chipbreaker | M12 |
| ISO Number | XOMX 120431TR-M12 |
