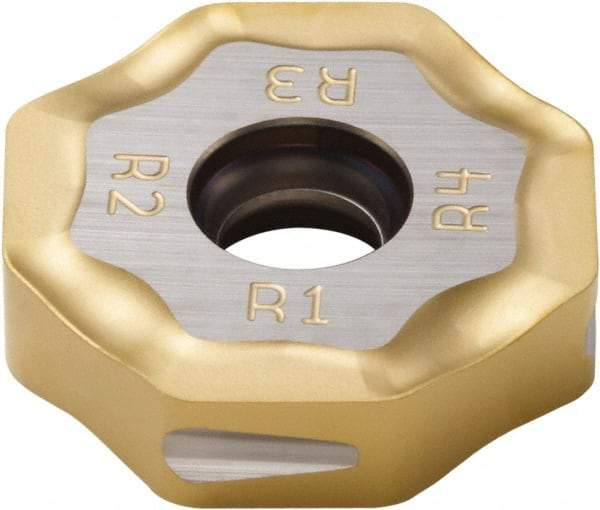

Seco - ONEU090520 M14 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 0.228" Thick, 0.843" Inscribed Circle
Item #: 65943128
Brand: Seco
Model #: 65513
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONEU |
| Insert Size | 090520 |
| Material | Carbide |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Inscribed Circle (Decimal Inch) | 0.8430 |
| Thickness (Decimal Inch) | 0.2280 |
| Relief Angle | 0.000 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| Chipbreaker | M14 |
| ISO Number | ONEU090520ZZTN4-M14 |
