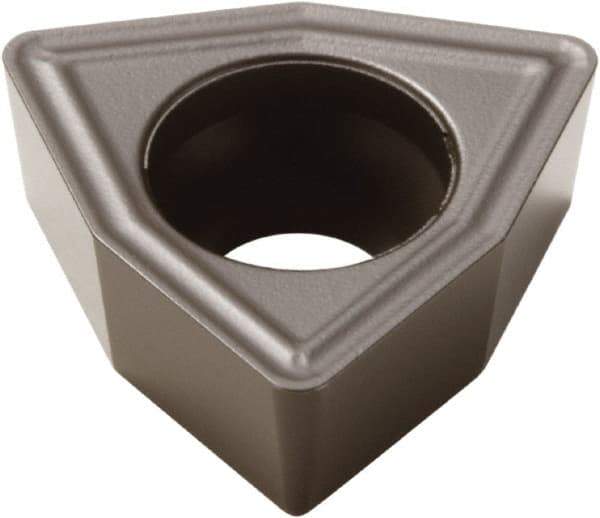

Seco - WCMX0.375 86 Grade DP3000 Carbide Indexable Drill Insert - TiCN/Al2O2 Finish, Trigon, 3/8" Inscribed Circle
Item #: 65934473
Brand: Seco
Model #: 09927
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WCMX |
| Insert Size | 0.375 |
| Material | Carbide |
| Manufacturer's Grade | DP3000 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Shape | Trigon |
| Width (Decimal Inch) | 0.3750 |
| Length (Decimal Inch) | 0.3750 |
| Relief Angle | 7 |
| Included Angle | 80 |
| Coating | TiCN/Al2O2 |
| Coating Process | Duratomic |
| Chipbreaker | 86 |
