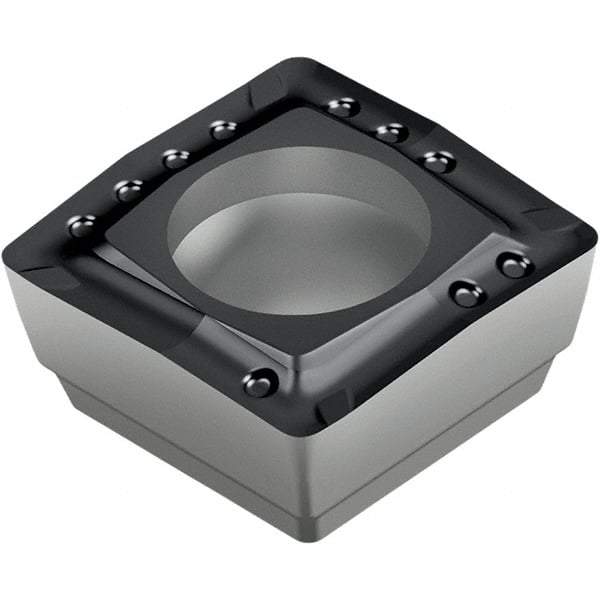

Walter - P4842 E57 Grade WKP35S Carbide Indexable Drill Insert - TiCN/Al2O3/TiN Finish, Square, 5.51mm Inscribed Circle
Item #: 65411316
Brand: Walter
Model #: 6170426
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P484 |
| Insert Size | 2 |
| Material | Carbide |
| Material Grade | P35/K35 |
| Manufacturer's Grade | WKP35S |
| Inscribed Circle (mm) | 5.51 |
| Inscribed Circle (Decimal Inch) | 0.2170 |
| Thickness (mm) | 2.39 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (mm) | 0.33 |
| Corner Radius (Decimal Inch) | 0.0130 |
| Shape | Square |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | E57 |
