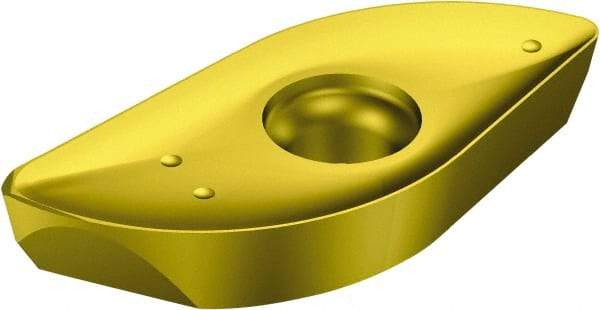

Sandvik Coromant - RA2162504 M-M Grade 1025 Carbide Milling Insert - TiCN/TiN Finish, 3/16" Thick, 1/2" Corner Radius
Item #: 65387169
Brand: Sandvik Coromant
Model #: 5739344
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RA216 |
| Insert Size | 2504 |
| Material | Carbide |
| Manufacturer's Grade | 1025 |
| Coating | TiCN/TiN |
| Length (mm) | 22.68 |
| Length (Decimal Inch) | 0.8930 |
| Thickness (mm) | 4.76 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.5000 |
| Corner Radius (mm) | 12.70 |
| Hole Diameter (mm) | 4.70 |
| Hole Diameter (Decimal Inch) | 0.1850 |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Right Hand |
| Chipbreaker | M-M |
| Maximum Depth of Cut (Decimal Inch) | 0.8937 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | RA216-25 04 M-M 1025 |
