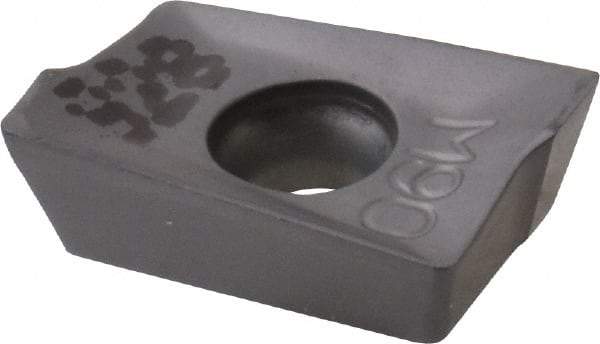

Iscar - HM90 APCT100302 Grade IC928 Carbide Milling Insert - TiAlN Finish, 0.139" Thick, 0.2mm Corner Radius
Item #: 65383804
Brand: Iscar
Model #: 5602960
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 APCT |
| Insert Size | 100302 |
| Material | Carbide |
| Material Grade | C1/C3/C5/C6 |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.2740 |
| Length (Decimal Inch) | 0.4591 |
| Thickness (Decimal Inch) | 0.1390 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| ISO Number | HM90 APCT 100302R-PDR |
