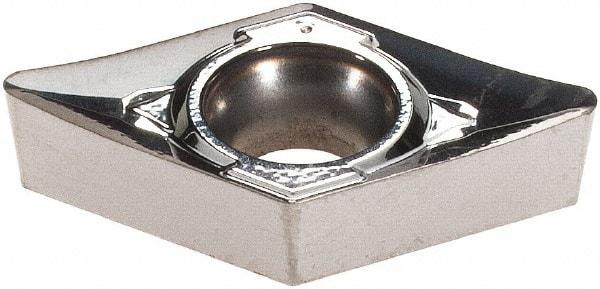

Iscar - DCGT3-2 AS Grade IC320 Carbide Boring Insert - TiN/TiCN Finish, 55° Diamond, 7° Relief Angle, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 64986888
Brand: Iscar
Model #: 5594897
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DCGT |
| Insert Size | 3-2 |
| Manufacturer's Grade | IC320 |
| Inscribed Circle (mm) | 9.52 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (Inch) | 5/32 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating | TiN/TiCN |
| Chipbreaker | AS |
| Length (mm) | 11.60 |
| Length (Decimal Inch) | 0.4567 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Relief Angle | 7 |
| Included Angle | 55 |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Shape | Diamond |
