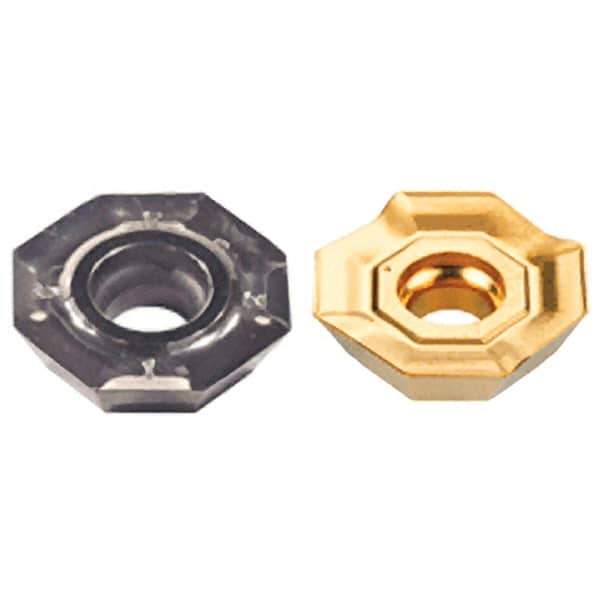

Iscar - OFCT07T3 16 Grade IC908 Carbide Milling Insert - TiAlN Finish, 0.177" Thick, 0.7224" Inscribed Circle, 0.8mm Corner Radius
Item #: 64946569
Brand: Iscar
Model #: 5604640
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | OFCT |
| Insert Size | 07T3 |
| Material | Carbide |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.7224 |
| Thickness (Decimal Inch) | 0.1770 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 25.000 |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| Chipbreaker | 16 |
| ISO Number | OFCT 07T3-RW-16 |
