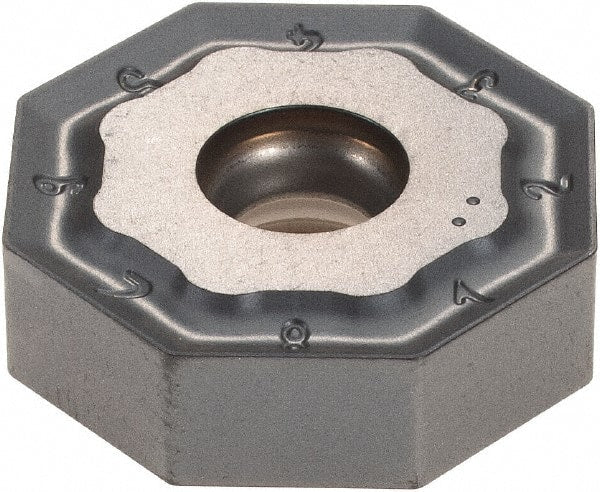

ONMU080608TN IC910 Carbide Milling Insert AlTiN Finish, 0.2362″ Thick
Item #: 64856917
Brand: Iscar
Model #: 5604602
Product Specifications
| Insert Style | ONMU |
| Insert Size Code | 080608 |
| Insert Size | 080608 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC910 |
| Inscribed Circle (Decimal Inch) | 0.7953 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Insert Hand | Neutral |
| Relief Angle | 0.00 |
| Series | 16MILL |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (mm) | 5.50 |
| Number Of Cutting Edges | 16 |
| Insert Shape | Octagon |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Iso Code | ONMU 080608-TN |
| Standards | ISO 13399 |
| Rake Angle | 26.00 |
| Chip Breaker | TN |
| Shape | Octagon |
| Coating/Finish | Coated |
| Included Angle Degree | 135 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2362 |
