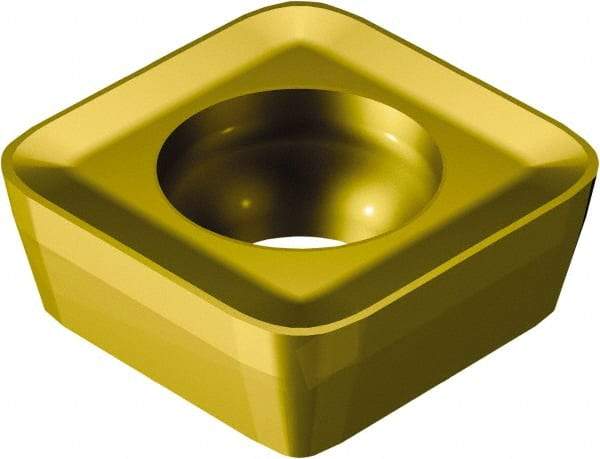

Sandvik Coromant - R210090414 PM Grade S40T Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 4.5mm Thick, 9.5mm Inscribed Circle, 1.4mm Corner Radius
Item #: 64674401
Brand: Sandvik Coromant
Model #: 5853542
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R210 |
| Insert Size | 090414 |
| Material | Carbide |
| Manufacturer's Grade | S40T |
| Coating | TiCN/Al2O3/TiN |
| Length (mm) | 5.77 |
| Inscribed Circle (mm) | 9.50 |
| Inscribed Circle (Decimal Inch) | 0.3740 |
| Thickness (mm) | 4.50 |
| Thickness (Decimal Inch) | 0.1772 |
| Corner Radius (Decimal Inch) | 0.0551 |
| Corner Radius (mm) | 1.40 |
| Hole Diameter (mm) | 4.20 |
| Hole Diameter (Decimal Inch) | 0.1654 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | PM |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R210-09 04 14E-PM S40T |
