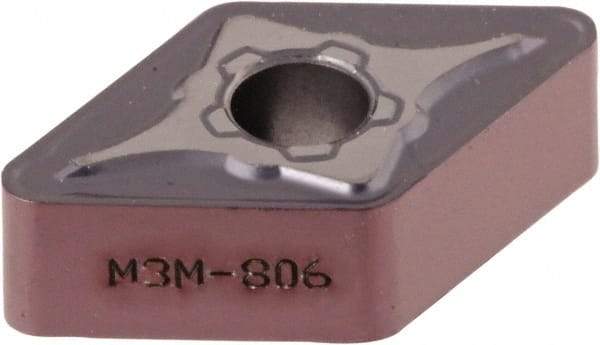

Iscar - DNMG333 M3M Grade IC806 Carbide Turning Insert - TiAlN Finish, 55° Diamond, 3/8" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 64661960
Brand: Iscar
Model #: 5566744
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 333 |
| Material | Carbide |
| Length (mm) | 11.63 |
| Length (Decimal Inch) | 0.4580 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | IC806 |
| Coating | TiAlN |
| Material Grade | Submicron |
| Chip Breaker | M3M |
| Insert Length (Decimal Inch) | 0.4580 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | DNMG 333-M3M |
| Rake | Positive |
| Relief Angle | 0 |
| Proprietary Coating Designation | SumoTec |
| Coating Process | PVD |
| Included Angle | 55 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 3.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Insert Holding Method | Pin & Clamp |
| FullRadius | No |
| Shape | Diamond |
