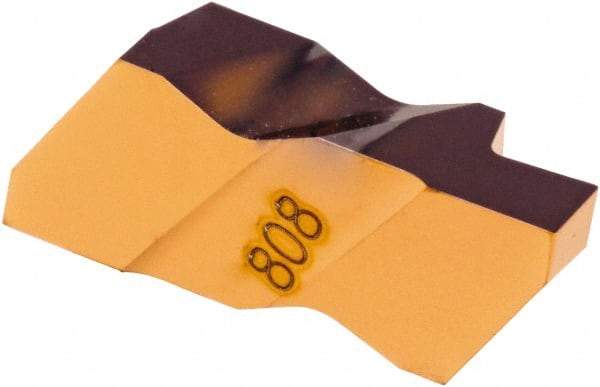

Iscar - 3122ING Grade IC808, 3.1mm Cutting Width Carbide Grooving Insert - 3.81mm Max Depth of Cut, Left Hand, 0.18mm Corner Radius, TiAlN/AlTiN/TiN Finish
Item #: 64661341
Brand: Iscar
Model #: 6405487
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ING |
| Insert Size | 3122 |
| Material | Carbide |
| Cutting Width (mm) | 3.10 |
| Cutting Width (Decimal Inch) | 0.1220 |
| Maximum Depth of Cut (mm) | 3.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Material Grade | Fine-grained |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Insert Hand | Left Hand |
| Relief Angle | 10 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.18 |
| Corner Radius (Decimal Inch) | 0.0070 |
| Coating Process | PVD |
| Overall Length (mm) | 22.86 |
| Overall Length (Decimal Inch) | 0.9000 |
| Series | Notch-Grip |
| Rake Angle | 3 |
| Overall Width (mm) | 4.95 |
| Overall Width (Decimal Inch) | 0.1950 |
