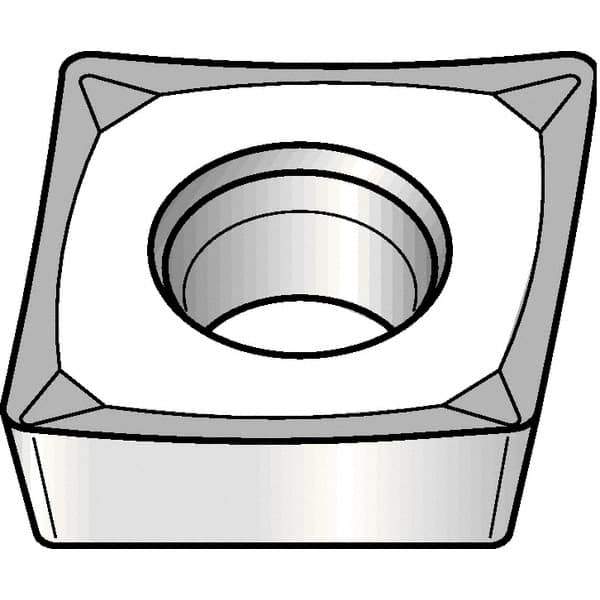

Kennametal - CPGT32.52, KCU10 Grade Carbide Profiling Insert - AlTiN Finish, 80° Incl Angle, Diamond, 0.3808" Side Length, 5/32" Thick, 1/32" Corner Radius, 3/8" Inscribed Circle
Item #: 64622533
Brand: Kennametal
Model #: 4045225
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | CPGT |
| Insert Size | 32.52 |
| Manufacturer's Grade | KCU10 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (Inch) | 5/32 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Relief Angle | 11 |
| Coating | AlTiN |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Coating Process | PVD |
| Side Length (Decimal Inch) | 0.3808 |
| Side Length (mm) | 9.67 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Shape | Diamond |
