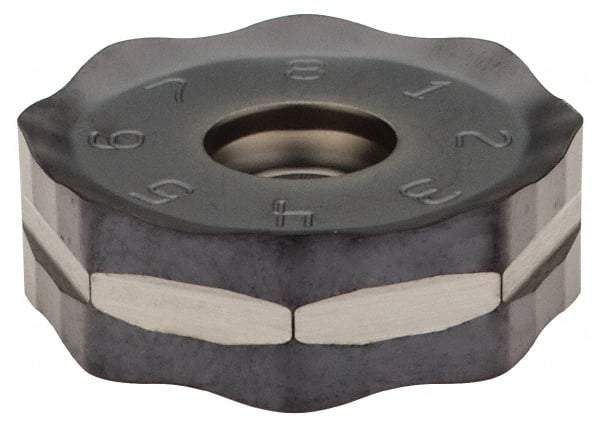

Seco - ONMU090520 M13 Grade MP3000 Carbide Milling Insert - TiAlN Finish, 0.228" Thick, 0.866" Inscribed Circle
Item #: 64539091
Brand: Seco
Model #: 52533
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONMU |
| Insert Size | 090520 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | MP3000 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.8660 |
| Inscribed Circle (Decimal Inch) | 0.8660 |
| Thickness (Decimal Inch) | 0.2280 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Shape | Octagon |
| Chipbreaker | M13 |
| ISO Number | ONMU090520ANTN-M13 |
