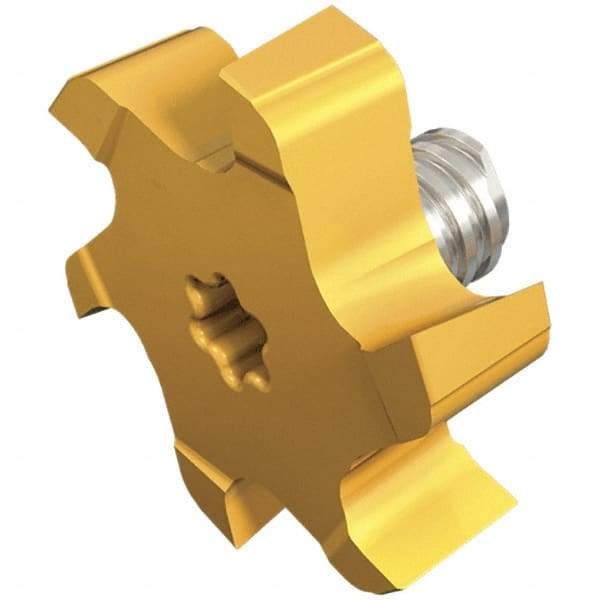

Iscar - MM TS-H Grade IC328 Carbide T-Slot Milling Tip Insert - TiN/TiCN Finish, 6 Flutes, 5/8" Cutting Diam, 1/8" Depth of Cut, 0.015" Cnr Rad
Item #: 64533375
Brand: Iscar
Model #: 5605820
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiN/TiCN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM TS-H |
| Milling Tip Type | T-Slot |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Manufacturer's Grade | IC328 |
| Depth of Cut (Decimal Inch) | 0.1250 |
| Number of Flutes | 6 |
| Coating | TiN/TiCN |
| Milling Tip Full Description | T-Slot |
| Corner Radius (Decimal Inch) | 0.0150 |
| Coating Process | PVD |
| Cutting Width (Decimal Inch) | 0.0560 |
| Thread Size | T06 |
