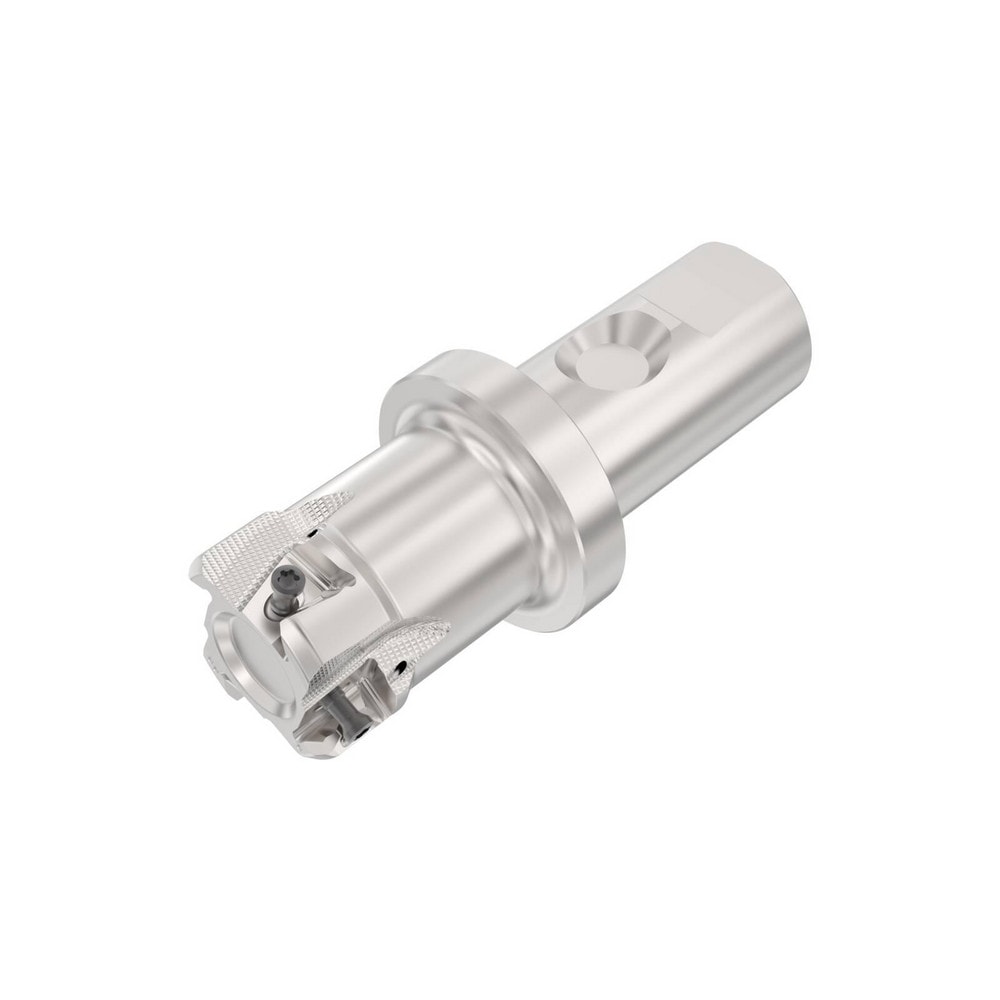

Indexable Square-Shoulder End Mill: R217.9401.500LO124A, 0.4724'' Max Depth of Cut, 1.5000'' Shank Dia, Cylindrical Shank
Item #: 86714979
Brand: Seco
Model #: 10207989
Product Specifications
| Cutting Diameter | 1.5000 |
| Cutting Diameter | 1-1/2 |
| Overall Length (Decimal Inch) | 8.2677 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutter Style | R217.94 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 0 |
| Tool Material | Steel |
| Series | R217.94-12 |
| Flute Type | Straight |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 7.0866 |
| Head Length (Decimal Inch) | 5.9055 |
| Maximum RPM | 11300.000 |
| Tool Application | Slotting; Shouldering |
| Tool Performance | General Purpose |
| Standards | ISO; ANSI |
| Rake | Negative |
| Complete Insert Compatibility | LOEX1207 |
| Insert Compatibility | LOEX1207 |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| ISO Number | R217.94-01.50-0-LO12-4A |
| Manufacturers Catalog Number | 10207989 |
| Number Of Flutes | 4 |
| Usable Length (Decimal Inch) | 5.9060 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Country of Origin | France |
