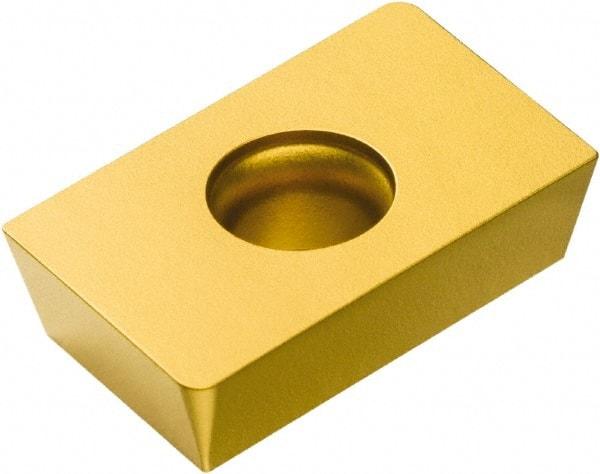

Sandvik Coromant - R216.2100204 Grade 235 Carbide Milling Insert - TiCN/TiN Finish, 2.38mm Thick, 0.4mm Corner Radius
Item #: 63868210
Brand: Sandvik Coromant
Model #: 5742855
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R216.2 |
| Insert Size | 100204 |
| Material | Carbide |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Width (mm) | 8.30 |
| Width (Decimal Inch) | 0.3268 |
| Thickness (mm) | 2.38 |
| Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Hole Diameter (mm) | 2.90 |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Included Angle | 88 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5742855 |
| ISO Number | R216.2-10 02 04 235 |
