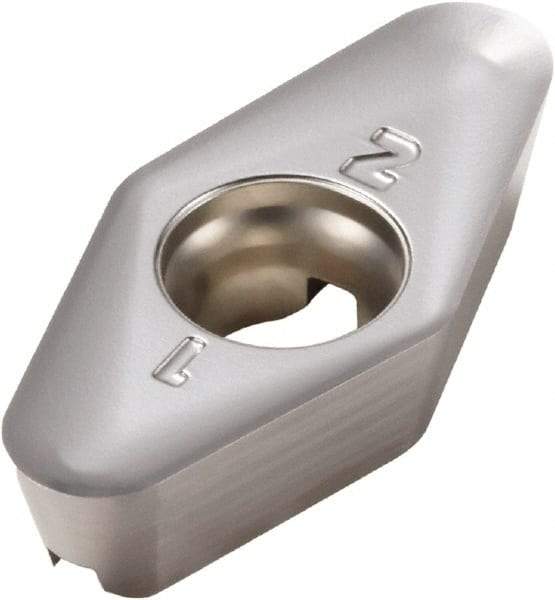

Seco - VPGX220663 E10 Grade H25 Carbide Milling Insert - Uncoated, 1/4" Thick, 0.245" Corner Radius
Item #: 63765523
Brand: Seco
Model #: 00129
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VPGX |
| Insert Size | 220663 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | H25 |
| Coating | Uncoated |
| Length (Decimal Inch) | 0.5510 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.2450 |
| Relief Angle | 11.000 |
| Rake Angle | 25 |
| Rake | Positive |
| Included Angle | 35 |
| Shape | Diamond |
| Chipbreaker | E10 |
| ISO Number | VPGX220663ER-E10 |
