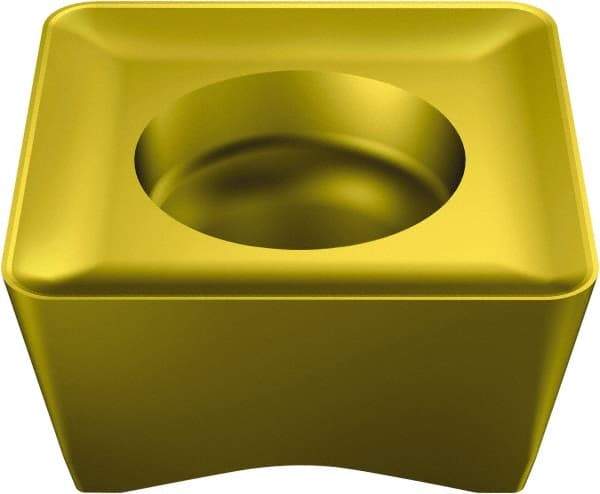

Sandvik Coromant - 690100510 SL Grade S40T Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 5.2mm Thick, 10mm Inscribed Circle, 1mm Corner Radius
Item #: 63621809
Brand: Sandvik Coromant
Model #: 5853411
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 690 |
| Insert Size | 100510 |
| Material | Carbide |
| Manufacturer's Grade | S40T |
| Coating | TiCN/Al2O3/TiN |
| Length (mm) | 9.00 |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (mm) | 5.20 |
| Thickness (Decimal Inch) | 0.2047 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Hole Diameter (mm) | 4.50 |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | SL |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 690-100510M-P-SL S40T |
