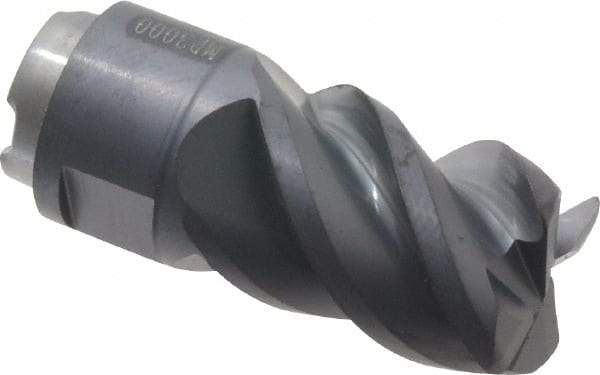

Seco - MP10 M02 Grade MP3000 Carbide Milling Tip Insert - TiAlN Finish, 4 Flutes, 3/8" Cutting Diam, 0.472" Depth of Cut, 0.826" Extension, 0.0315" Cnr Rad
Item #: 63475305
Brand: Seco
Model #: 67094
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Milling Tip Style | MP10 |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Material Grade | C6 |
| Manufacturer's Grade | MP3000 |
| Depth of Cut (Decimal Inch) | 0.4720 |
| Number of Flutes | 4 |
| Coating | TiAlN |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | PVD |
| Chipbreaker | M02 |
| Extension From Holder (Decimal Inch) | 0.8260 |
| Style | MP10-0.375R031Z4 |
