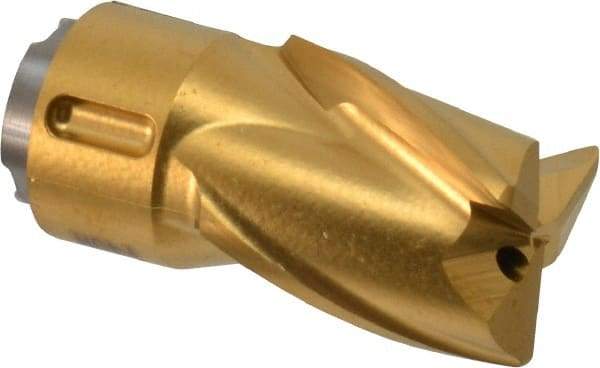

Seco - MP12 E04 Grade F40M Carbide Milling Tip Insert - TiAlN/TiN Finish, 3 Flutes, 1/2" Cutting Diam, 0.551" Depth of Cut, 0.945" Extension, 0.0315" Cnr Rad
Item #: 63475180
Brand: Seco
Model #: 67099
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Milling Tip Style | MP12 |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Material Grade | C5 |
| Manufacturer's Grade | F40M |
| Depth of Cut (Decimal Inch) | 0.5510 |
| Number of Flutes | 3 |
| Coating | TiAlN/TiN |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | PVD |
| Chipbreaker | E04 |
| Extension From Holder (Decimal Inch) | 0.9450 |
| Style | MP12-0.500R031Z3 |
