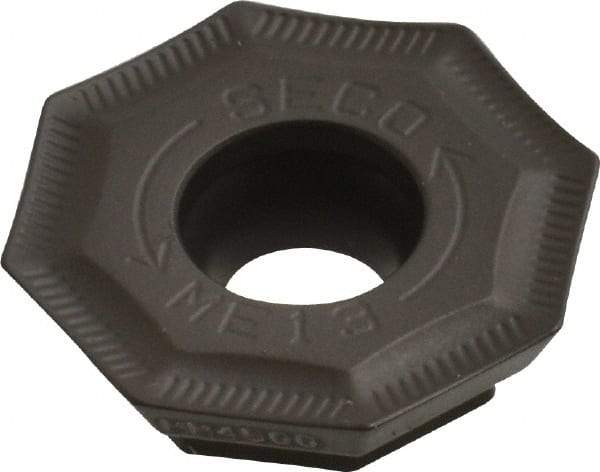

Seco - OFMT07040 ME13 Grade MM4500 Carbide Milling Insert - Al2O3/TiCN Finish, 0.191" Thick, 0.707" Inscribed Circle
Item #: 63474894
Brand: Seco
Model #: 65152
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | OFMT |
| Insert Size | 07040 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | MM4500 |
| Coating | Al2O3/TiCN |
| Inscribed Circle (Decimal Inch) | 0.7070 |
| Thickness (Decimal Inch) | 0.1910 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Coating Process | CVD |
| Shape | Octagon |
| Insert Hand | Right Hand |
| Chipbreaker | ME13 |
| ISO Number | OFMT070405TN-ME13 |
