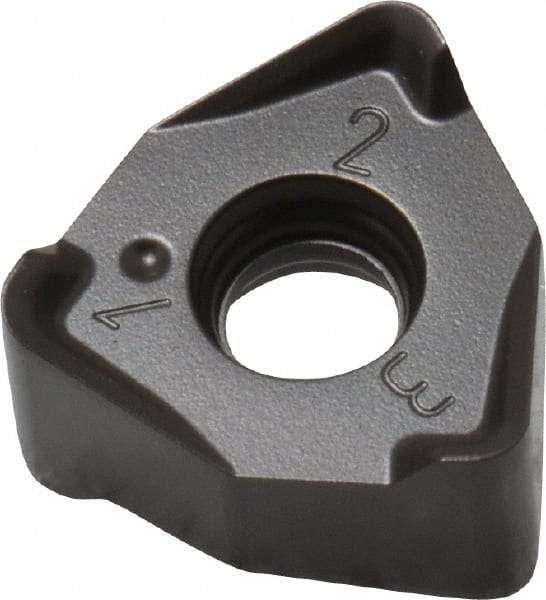

Seco - XNEX080616 ME09 Grade MM4500 Carbide Milling Insert - TiCN/Al2O3 Finish, 1/4" Thick, 0.047" Corner Radius
Item #: 63474647
Brand: Seco
Model #: 65230
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNEX |
| Insert Size | 080616 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | MM4500 |
| Coating | TiCN/Al2O3 |
| Width (Decimal Inch) | 0.4910 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Coating Process | CVD |
| Shape | Trigon |
| Insert Hand | Right Hand |
| Chipbreaker | ME09 |
| ISO Number | XNEX080616TR-ME09 |
