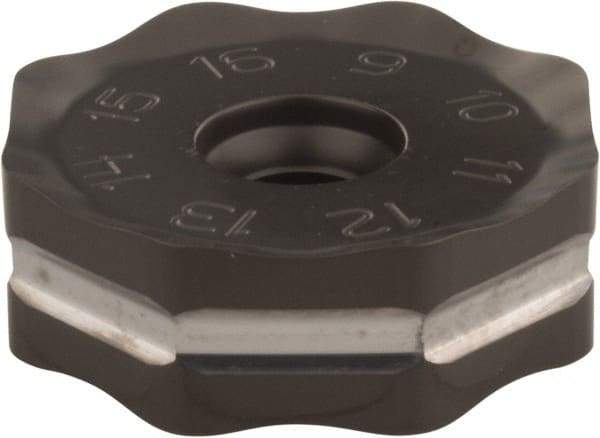

Seco - ONMU090520 ME12 Grade MK1500 Carbide Milling Insert - TiCN/Al2O3 Finish, 0.228" Thick, 0.866" Inscribed Circle
Item #: 63474415
Brand: Seco
Model #: 65464
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONMU |
| Insert Size | 090520 |
| Material | Carbide |
| Material Grade | C7 |
| Manufacturer's Grade | MK1500 |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (Decimal Inch) | 0.8660 |
| Thickness (Decimal Inch) | 0.2280 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Shape | Octagon |
| Insert Hand | Right Hand |
| Chipbreaker | ME12 |
| ISO Number | ONMU090520ANTN-ME12 |
