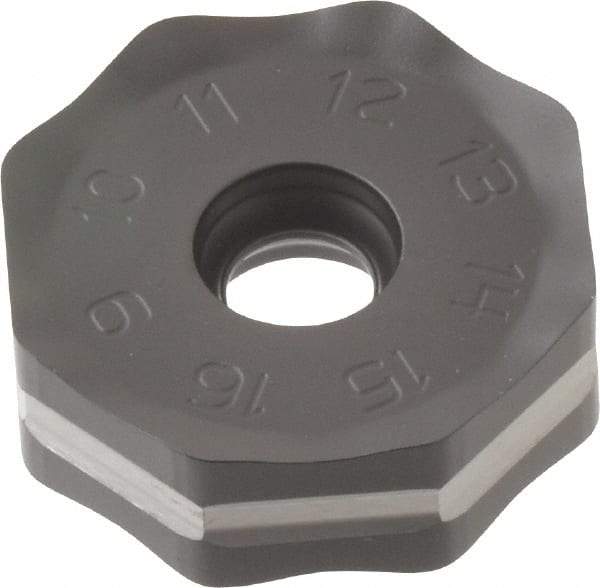

Seco - ONMU090520 ME12 Grade MM4500 Carbide Milling Insert - TiCN/Al2O3 Finish, 0.228" Thick, 0.866" Inscribed Circle
Item #: 63474340
Brand: Seco
Model #: 65477
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONMU |
| Insert Size | 090520 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | MM4500 |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (Decimal Inch) | 0.8660 |
| Thickness (Decimal Inch) | 0.2280 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Coating Process | CVD |
| Shape | Octagon |
| Insert Hand | Right Hand |
| Chipbreaker | ME12 |
| ISO Number | ONMU090520ANTN-ME12 |
