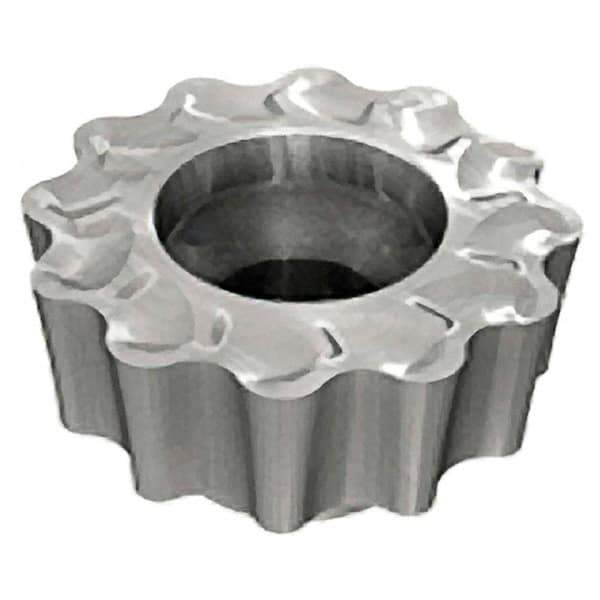

Iscar - RCMW2009 FW Grade IC928 Carbide Milling Insert - TiAlN Finish, 0.2362" Thick, 20mm Inscribed Circle
Item #: 63422448
Brand: Iscar
Model #: 5604126
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMW |
| Insert Size | 2009 |
| Material | Carbide |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Inscribed Circle (mm) | 20.00 |
| Inscribed Circle (Decimal Inch) | 0.7874 |
| Thickness (Decimal Inch) | 0.2362 |
| Relief Angle | 7.000 |
| Coating Process | PVD |
| Included Angle | 360 |
| Shape | Round |
| Chipbreaker | FW |
| Maximum Depth of Cut (mm) | 8.00 |
| ISO Number | RCMW 2009T-FW |
